4-Chain customized high-end powerful single-board computer developed in Israel
Main Technical Specifications
- Poweful CPU: 1.8Ghz Quad-Core ARM Cortex – A17 – 32 bit
- RAM: 2GB LPDDR3
- GPU: Mali T764 @ 600Mhz
- OS: Linux, Android Chrome OS
Overview
4-Chain is an electronic system design company, customized single-board computer developer located in Israel.
4-Chain develops, designs, distributes & manufactures customized HMI (human-machine interfaces & single-board computers, LCD touch panels & screens) on Linux, Android, Chrome OS operating systems.
The products designed by 4-Chain are customized according to any customer requirements.

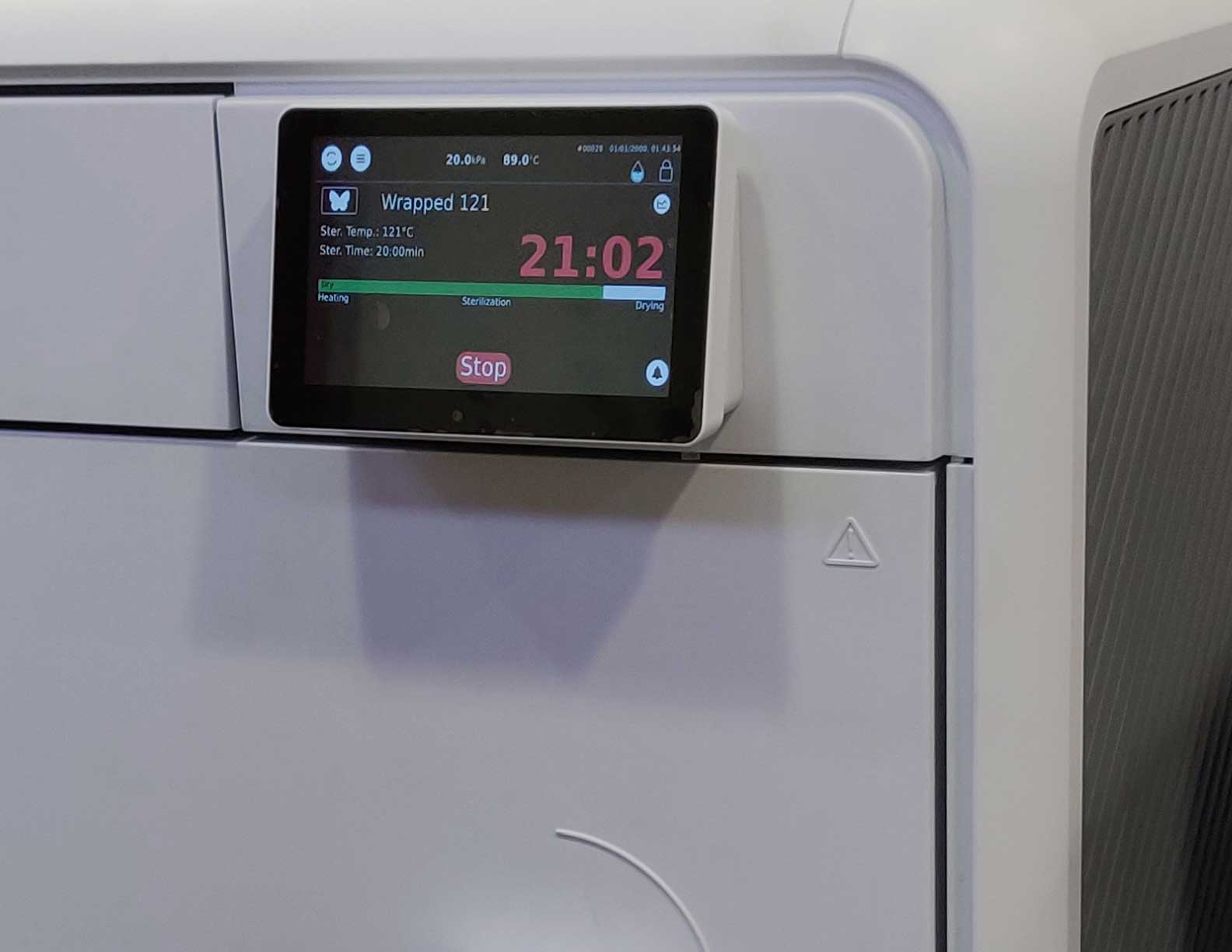

4-Chain customizedSingle Board Computer is a powerful high-end SBC controller embedded into customer appliances, devices, machines or added externally.

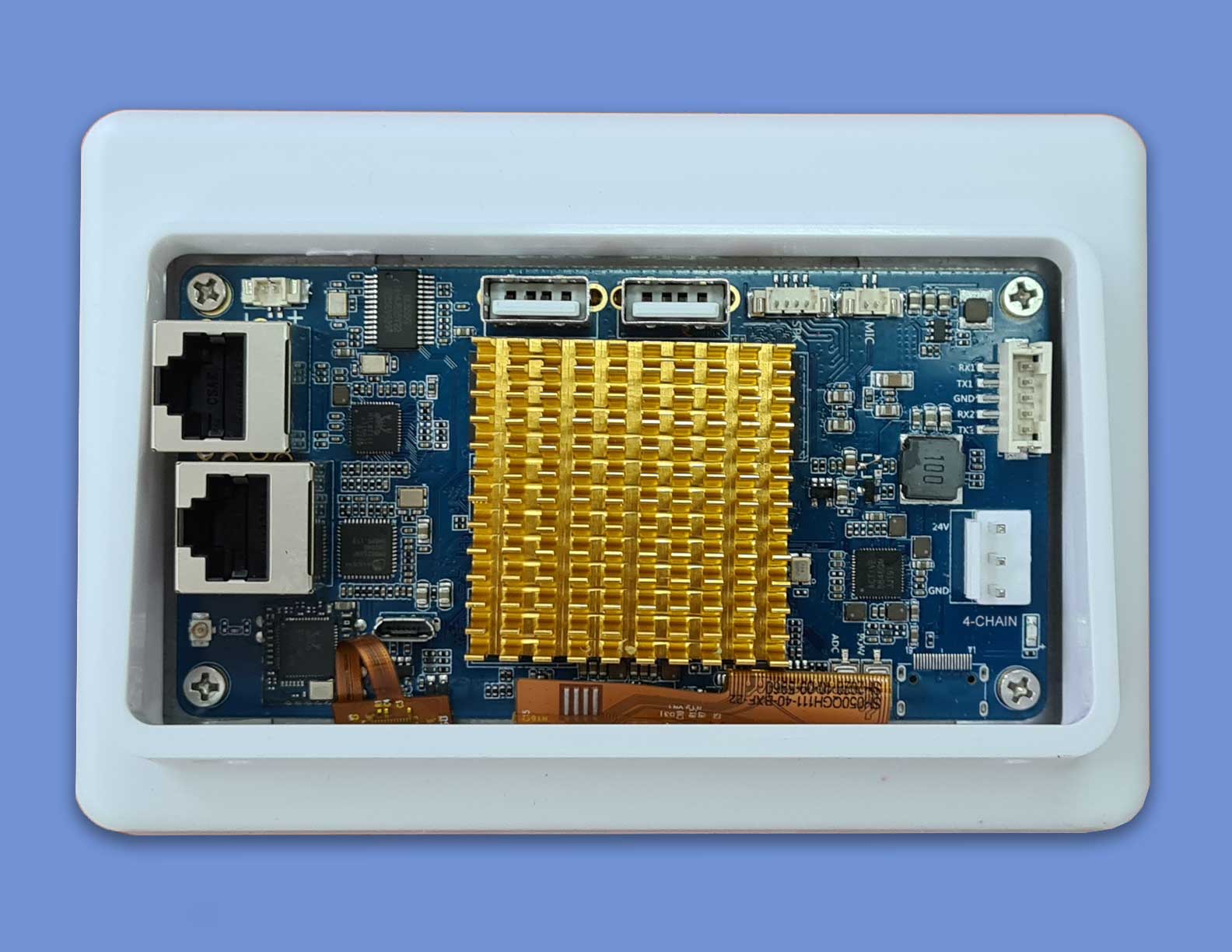

It can be customized in size, screen size, required ports & I/O connectors, services, there are industrial & ruggedized versions available.
The system is designed to be used with additional modules: cameras, additional cooling fans, LED matrix, provides native wireless connectivity via WiFi & Bluetooth or an additional separate cellular module.
The lifecycle of the embedded SBC developed by 4-Chain can be secured to fit the lifecycle of the customer system.
Applications of Embedded SBC
- Integrated Embedded Controller
- Centralized Controller
- Medical Industry
- Security Systems
- IOT – Internet of things
- Industrial Automations
- Robotics Industry
- Military Industry
- Artificial Intelligence
- Smart Home Systems
- Smart Office Systems
- Retail Automations
Additional customizations
- Industrial Grade SBC Version
- Ruggedized SBC Version
| Size | 100 x70x25 mm |
| Connector to screen + touch -Size Dimension + RGB parallel+i2c Connectors for screen and touch screen (optional HDI) | 800x480 and 1920x 1200 pixels |
| Input voltage | 5v, 12v, 24v |
| RAM | 1GB/2GB |
| Flash Memory EMMC | 8GB/16GB |
| Life time | 5 years |
| Std for sub system | UL94 -V0 |
| Std for integrated | UL508 |
| Operating System | Operation system Linux Debian/Ubumtu with GUI |
| Browser | Chromium browser |
| Programmable language Dot net platform. C# Win | |
| Multi Language | 20 language |
| Communication | TCP/IP |
| Free USB port | 2 |
| port Ethernet -RJ45 | 1 x 100Base-T, 1 x 1000Base-T |
| Serial connection RS 232 | 1 |
| Speed Minimum capacity | minimum 1.6GHZ |
| Power of controller (Watts) | 3 |
| Power of touchscreen (Watts) | 3 |
| Operating Temperature | 0 - 80 |
| RTC (real time clock) connected to Back up lithium battery Life time without power. We can design external | 5 years |
| The battery has to locate on seat replace without electric tool. | |
| Wi-Fi communication 2.4GHz | 1 |
| 1 x OTG UART Debug | |
| 1 x Head Phone，1x Mic. | |
| Audio output Support 5W 8Ω dual-channel power amplifier - our design | |
| Embedded Single Board Computer supports keyboard | |
| Embedded Single Board Computer supports mouse |

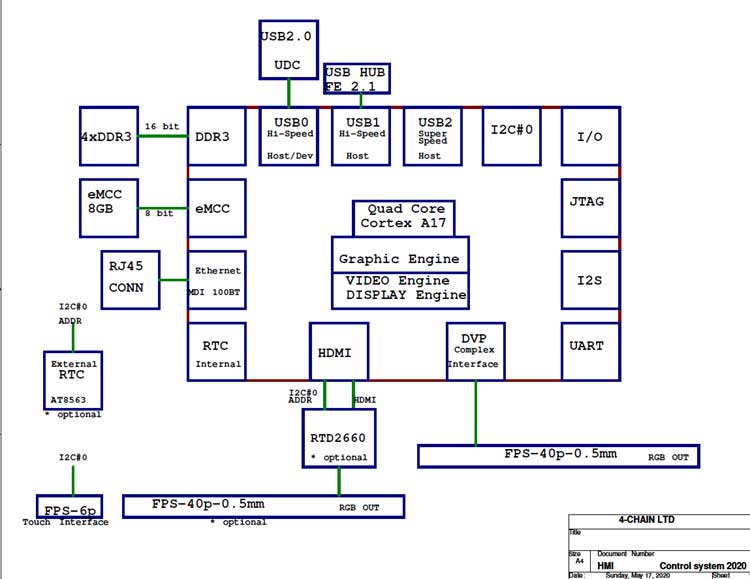

Customized High-End Single Board Computer - the scematics
